Dietzgen

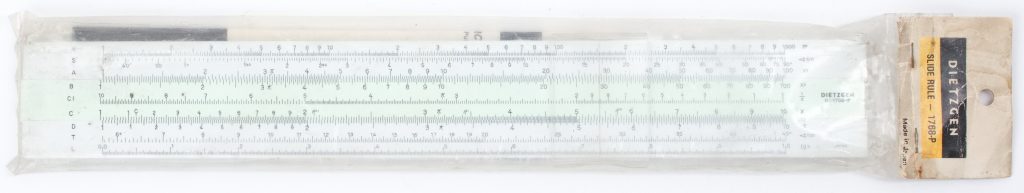

Dietzgen 1734 Microglide Decimal Trig Log Log – Full Size Rule
Dietzgen 1734 Microglide Decimal Trig Log Log – Full Size Rule

Dietzgen 1734 Microglide Decimal Trig Log Log – Full Size Rule

USD $95

Wood based rule with 22 scales.  Not rated for fishing, hunting, or vehicle maintenance.  Pretty good at performing advanced mathematics.

Scales include:
Front – LL02, LL03, DF, CF, CIF, L, CI, C, D, LL3, LL2
Back – LL01, K, A, B, T>45, T<45, ST, S, D, DI, LL1

Stock: 1

Place order

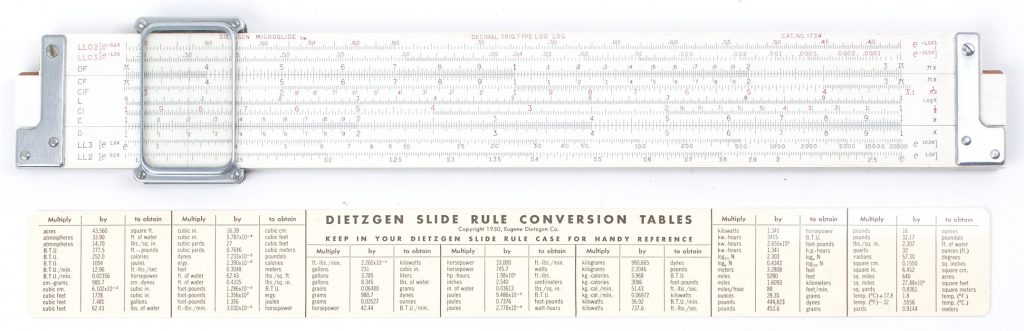

Dietzgen 1734 MicroGlide, Decimal Trig Type Log Log – Full Size Rule
Dietzgen 1734 MicroGlide, Decimal Trig Type Log Log – Full Size Rule

Dietzgen 1734 MicroGlide, Decimal Trig Type Log Log – Full Size Rule

USD $59

This is a 22 scale, full size rule that includes a formula and unit conversion reference card.  The reference card is damaged and has a piece missing from the left edge.

Scales include:
Front – LL01, K, A, B, T<45, T>45, ST, S, D, DI, LL1
Back – LL02, LL03, DF, CF, L, CI, C, D, LL3, LL2

Stock: 1

Place order

The Dietzgen Maniphase Multiplex Vector Type Log Log Slide Rule N0. 1735 by Vernon G Lippitt, H Loren Thompson, and Ovid W Eshbach
The Dietzgen Maniphase Multiplex Vector Type Log Log Slide Rule N0. 1735 by Vernon G Lippitt, H Loren Thompson, and Ovid W Eshbach
The Dietzgen Maniphase Multiplex Vector Type Log Log Slide Rule N0. 1735 by Vernon G Lippitt, H Loren Thompson, and Ovid W Eshbach

The Dietzgen Maniphase Multiplex Vector Type Log Log Slide Rule N0. 1735 by Vernon G Lippitt, H Loren Thompson, and Ovid W Eshbach

USD $30

While this manual was printed specifically for the Dietzgen 1735, it is equally useful in learning any advanced rule.  This manual does not rely as heavily on diagrams, as it uses those initially to teach the use of the basic scales, however, it uses extensive text based explanations and exercises throughout the manual.  Manual is in very good condition with no significant wear or discoloration to either the cover or pages.

Printed in 1946, 163 pages, heavy paper bound.

Stock: 1

Place order

Decimal Trig Type Log Log Slide Rule by Dietzgen
Decimal Trig Type Log Log Slide Rule by Dietzgen
Decimal Trig Type Log Log Slide Rule by Dietzgen

Decimal Trig Type Log Log Slide Rule by Dietzgen

USD $25

Like all of Ditzgen’s documentation, this is a clear and easy to understand guide on how to use a slide rule, including its more advanced trig and log functions.  It uses enlarged diagrams and sample problem sets (with answers) to walk students through using their rules.  In excellent condition with very little wear or damage.

Printed in 1960, 106 pages, soft cover.

Stock: 1

Place order

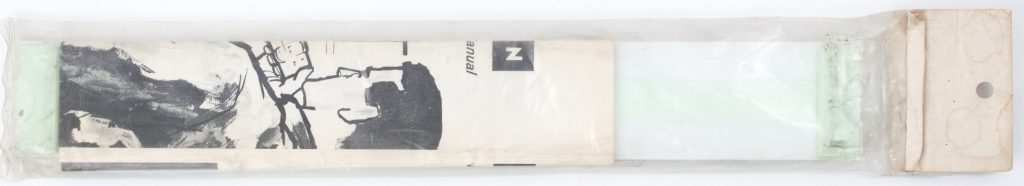

Dietzgen Decimal Trig Type Log Log Slide Rule by Eshbach & Thompson
Dietzgen Decimal Trig Type Log Log Slide Rule by Eshbach & Thompson

Dietzgen Decimal Trig Type Log Log Slide Rule by Eshbach & Thompson

USD $35

This is a self-teaching instructional manual for the Dietzgen Deci Trig Log Log slide rule.

This book is carefully sealed in a plastic sleeve, and was not possible to confirm year of publication or page count.   It is in very good condition with no color fading to the cover, and only minor wear around the edges.

Stock: 1

Place order

Dietzgen – Drafting & Surveying Supplies
Dietzgen – Drafting & Surveying Supplies
Dietzgen – Drafting & Surveying Supplies

Dietzgen – Drafting & Surveying Supplies

USD $40

This hard-bound catalog of Dietzgen’s various wares dates to 1928, and includes a sample of drawing and tracing papers on the interior cover.  An additional price list for the 1929 year is included fixed to the interior of the rear cover.

496 pages, in very good condition with no significant wear to the cover, spine or pages.

Stock: 1

Place order

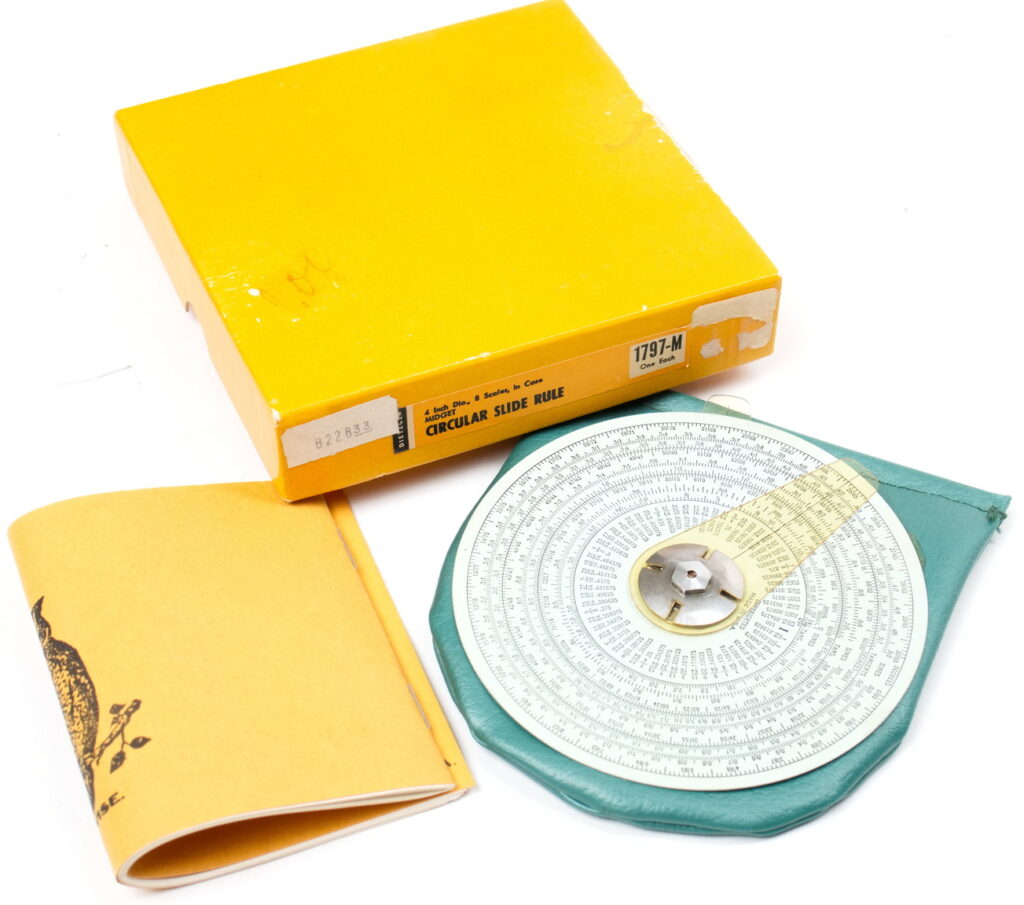

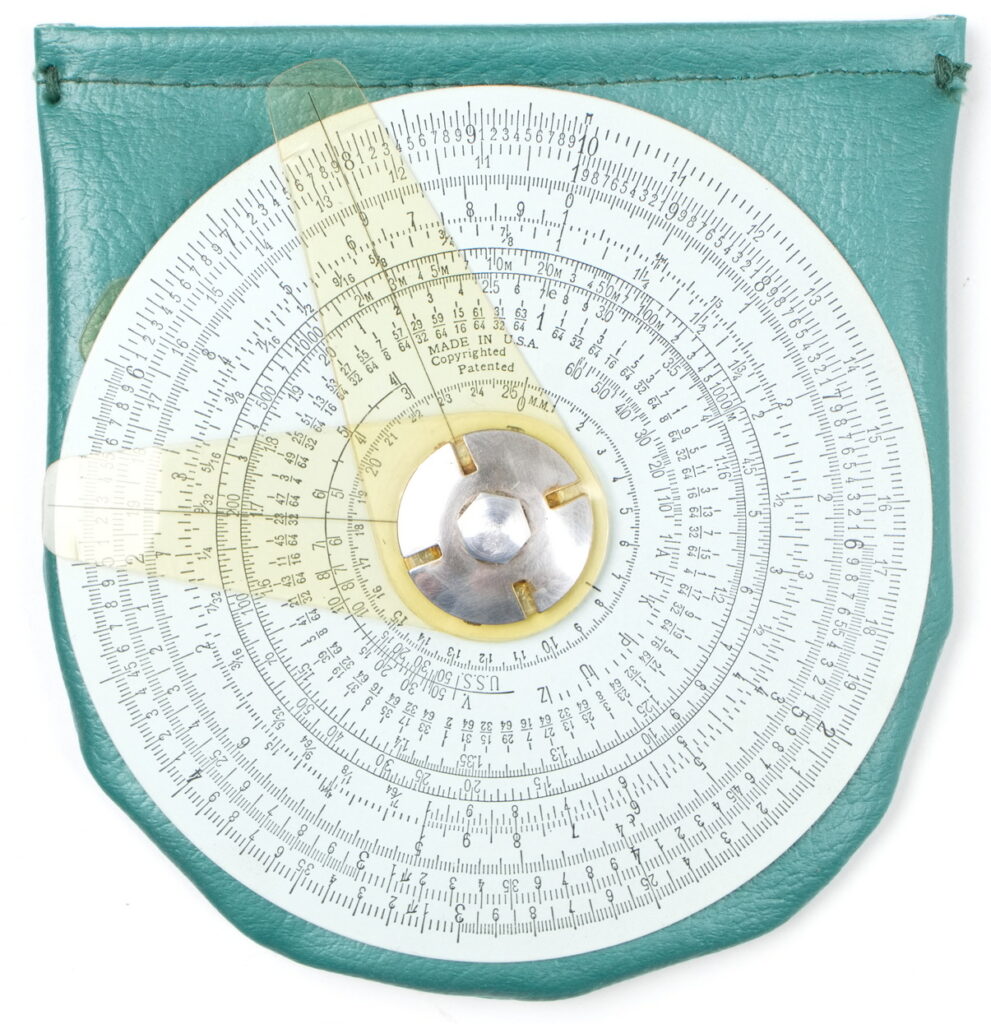

Dietzgen 1797-M 4″, 8 Scale Circular Rule
Dietzgen 1797-M 4″, 8 Scale Circular Rule

Dietzgen 1797-M 4″, 8 Scale Circular Rule

USD $249

This is a very rare 4″ pocket circular rule, that comes with both the original factory box and manual in very good condition.

Scales include: A, C, CI, Log, Log-Log, Binary, S,

Stock: 1

Place order

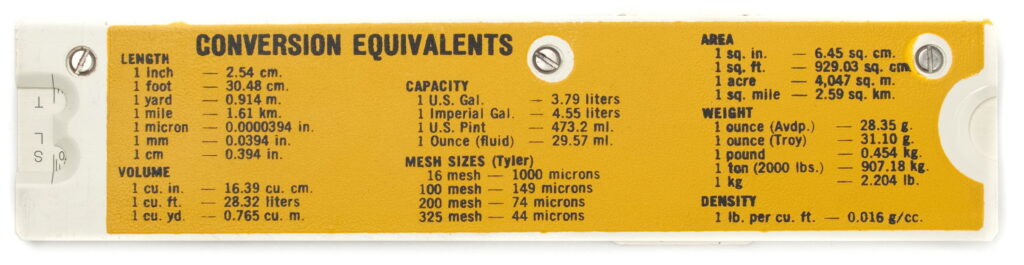

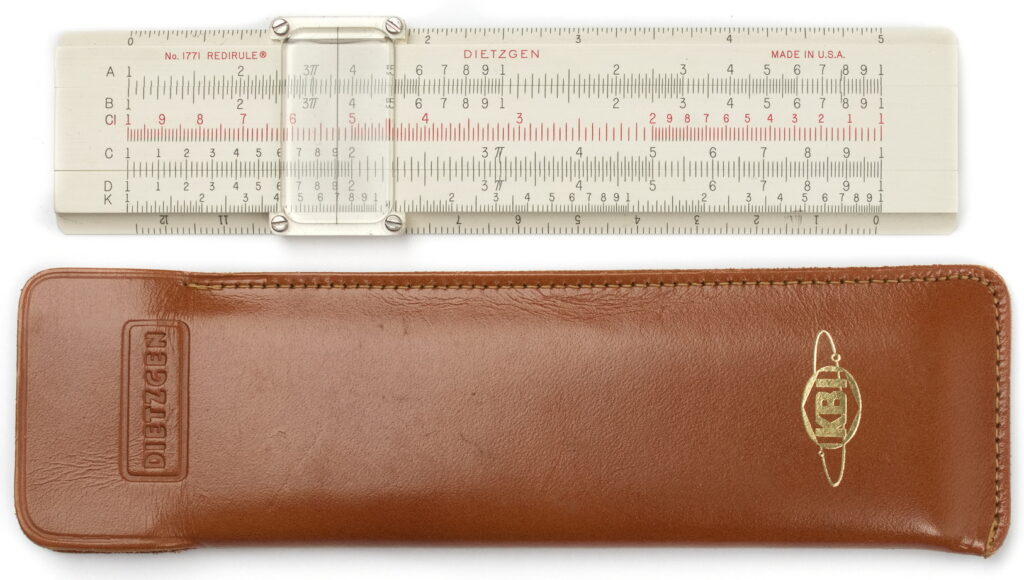

Dietzgen 1771 Redirule Pocket Rule
Dietzgen 1771 Redirule Pocket Rule

Dietzgen 1771 Redirule Pocket Rule

USD $40

Still in good condition, this rule has no scale bleeding and moves smoothly.  Features imperial and metric rulers on the upperand lower edges of the rule, back features standard unit conversions.

Scales include:
Front – A, B, C, D, K, CI, S, L, T
Back – Unit conversion chart

Stock: 1

Place order

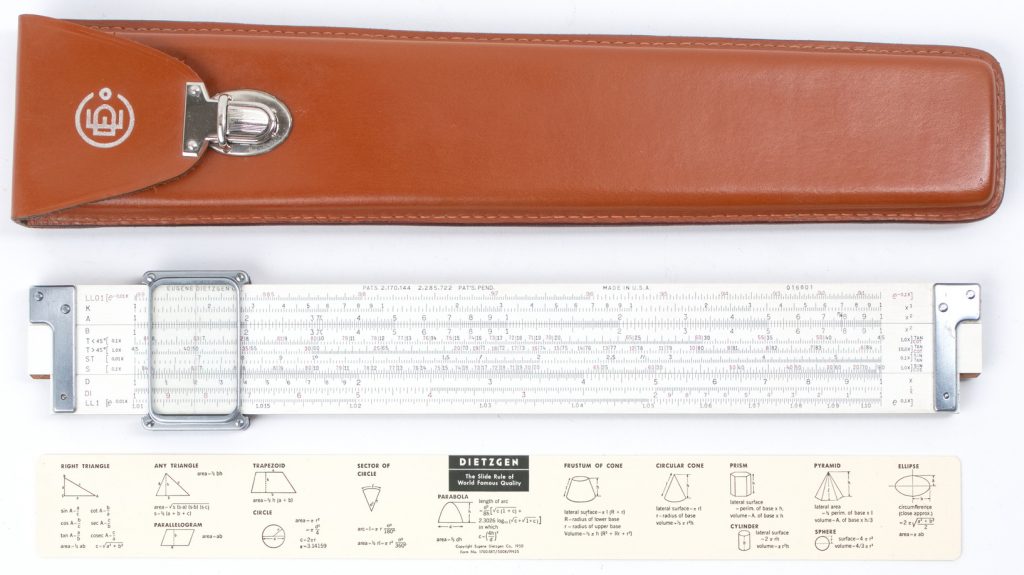

Dietzgen Vector Log Log Full Size Rule
Dietzgen Vector Log Log Full Size Rule

Dietzgen Vector Log Log Full Size Rule

USD $45

This full size rule features 25 scales, and includes the original case and included formula/data rule (which includes common geometric formulas, and unit conversions).

Scales are as follows:
Front – Th, Sh2, Sh1, A, B, T<45, T<45, ST, S, D, DI, K
Back – LL01, LL02, LL03, DF, CF, CIF, L, CI, C, D, LL3, LL2, LL1

Stock: 1

Place order
