Probes

FLUKE – 80i-410 DC/AC Current Probe
FLUKE – 80i-410 DC/AC Current Probe
FLUKE – 80i-410 DC/AC Current Probe

FLUKE – 80i-410 DC/AC Current Probe

USD $45

This is a battery-powered clamp-on current probe used with a voltmeter to measure DC or AC current up to 400A.  Each jaw of the probe contains half of a magnetic core, and an amplifier circuit generates an output signal of 1mV per amp.  Degaussing is accomplished by manually snapping the jaws.  Ranges and specifications:

  • Specified current range: 5-400A DC or AC
  • Usable current range: 2-600A DC or AC
  • Accuracy: +/- 5%
  • Frequency response: -7% @ 400Hz, -3dB @ 120Hz
  • Working voltage: 660V RMS

Stock: 1

Place order

UEi TA2K -40 to 1200F Dual Input Adapter
UEi TA2K -40 to 1200F Dual Input Adapter
UEi TA2K -40 to 1200F Dual Input Adapter
UEi TA2K -40 to 1200F Dual Input Adapter
UEi TA2K -40 to 1200F Dual Input Adapter

UEi TA2K -40 to 1200F Dual Input Adapter

USD $50

The TA2K will convert any multimeter with .001 volt DC measurement capability into a dual input temperature tester! Temperature (either ˚F or ˚C), is converted to millivolts and shows up on your DMM display just as it does on a digital thermometer.  This adapter plugs directly into DMM’s that use industry-standard 4mm jacks. It includes differential mode, which is great for checking air conditioning system’s superheat and the forward-facing control panel makes changing modes easy.

Stock: 1

Place order

UEI ATT20B Temperature Probe
UEI ATT20B Temperature Probe

UEI ATT20B Temperature Probe

USD $15

Technical data is not available on this probe, but it is assumed that its characteristics would be similar to the UEI ATT62 temperature probe.

Stock: 2

Place order

UEI 15′ Sealed Temperature Probe
UEI 15′ Sealed Temperature Probe

UEI 15′ Sealed Temperature Probe

USD $15

The UEi ATT62 is a sealed thermistor probe designed for measuring ambient and surface temperatures.

The ATT62 features a 14.8 ft. cable with a 3.5 mm connector plug that is compatible with the following UEi products: DT15A, DT20A, DT40, DTH31

Stock: 1

Place order

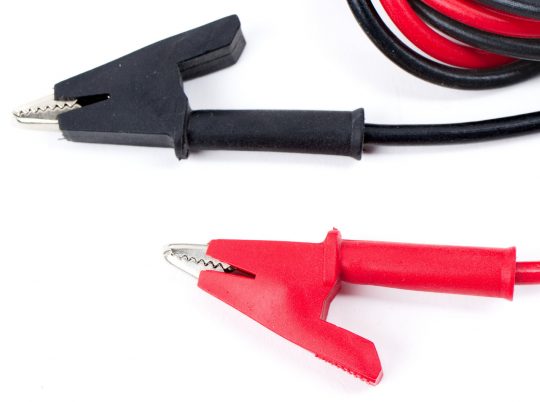

Tektronix 012-0941-01 Probes
Tektronix 012-0941-01 Probes

Tektronix 012-0941-01 Probes

USD $25

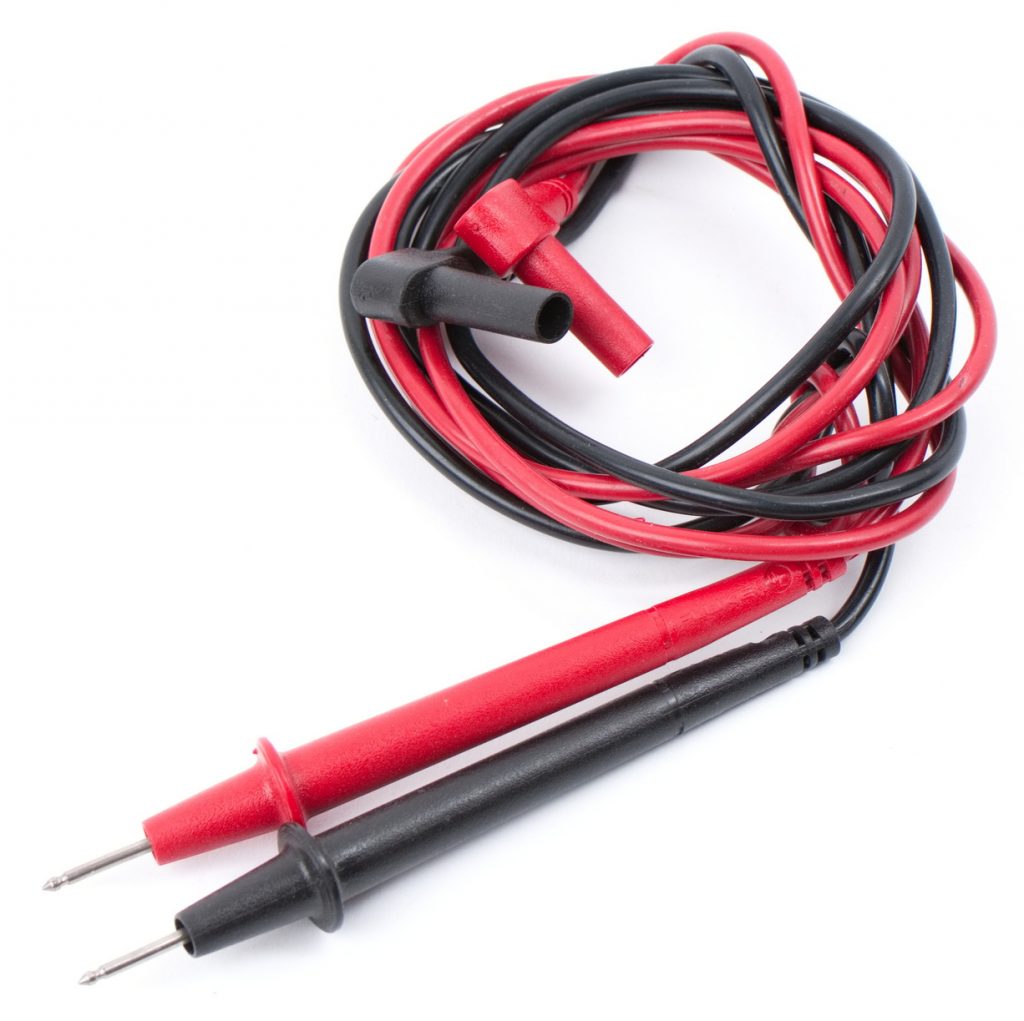

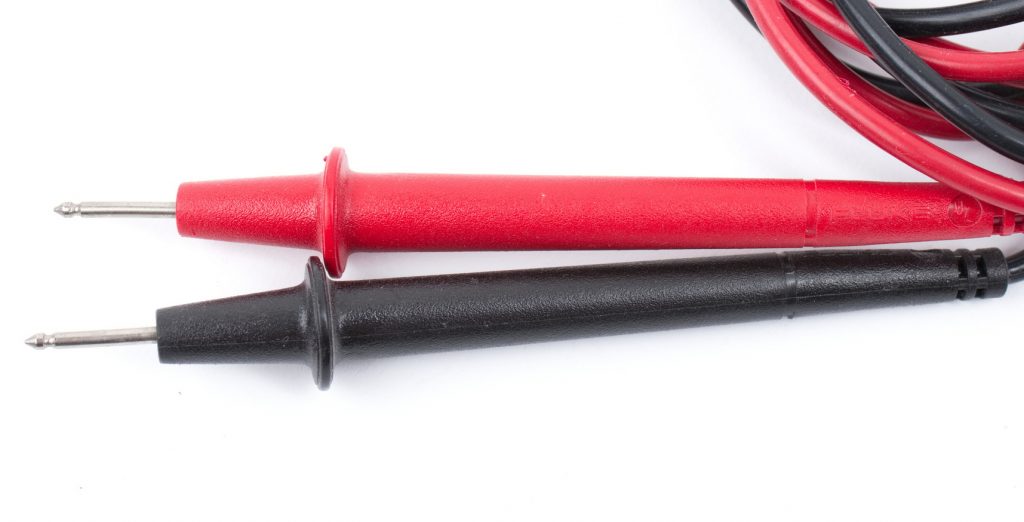

Standard red and black multimeter test leads from Tektronix, no longer in production.

Stock: 1

Place order

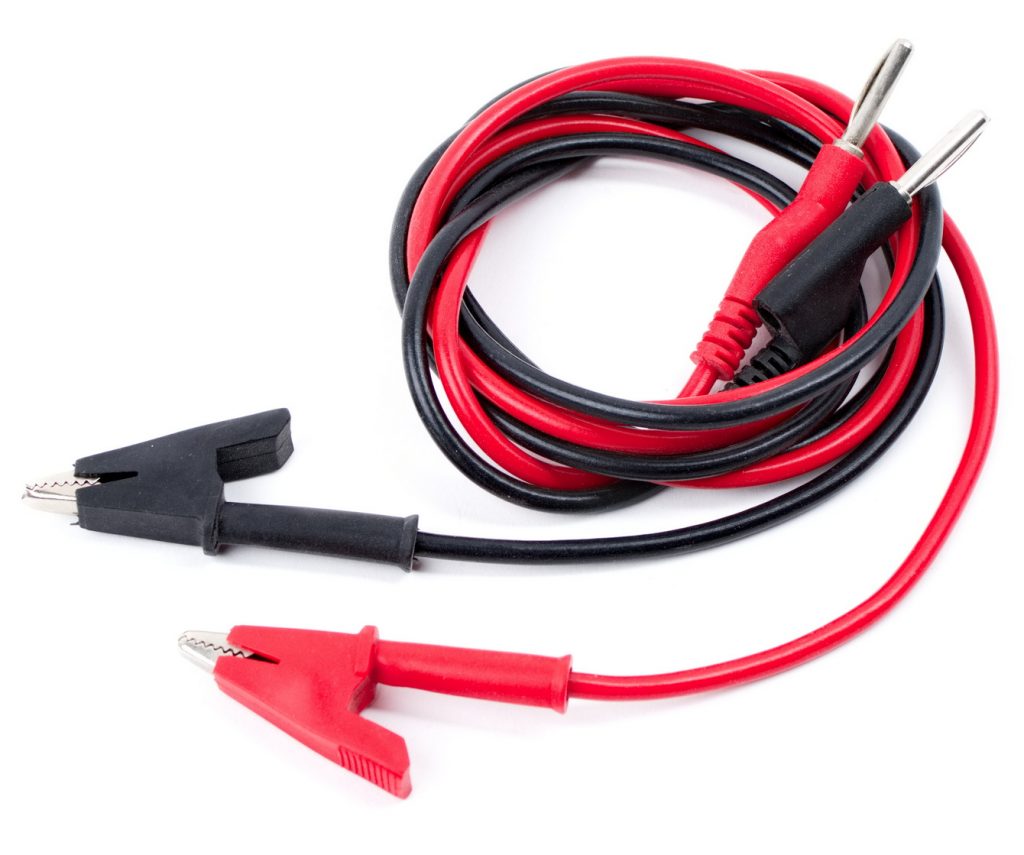

Tektronix 196-3200-01 Probes
Tektronix 196-3200-01 Probes

Tektronix 196-3200-01 Probes

USD $25

These are standard red and black electrical test leads: 26 Awg, 1200Mm L, 1Kv

Stock: 1

Place order

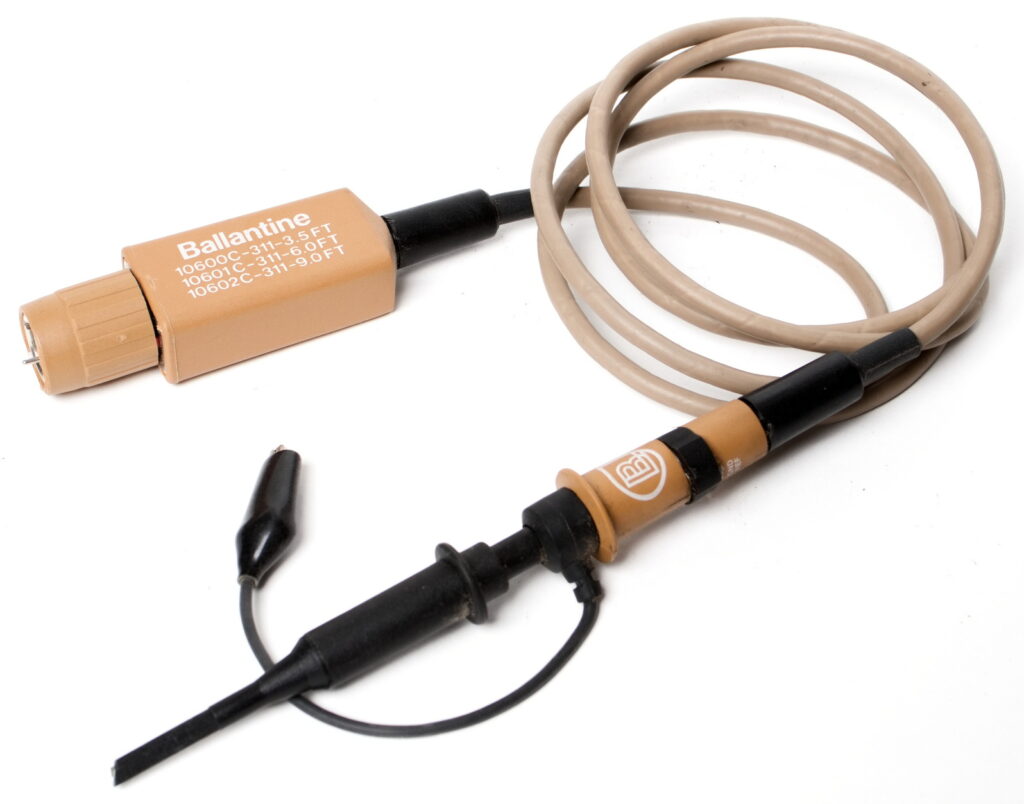

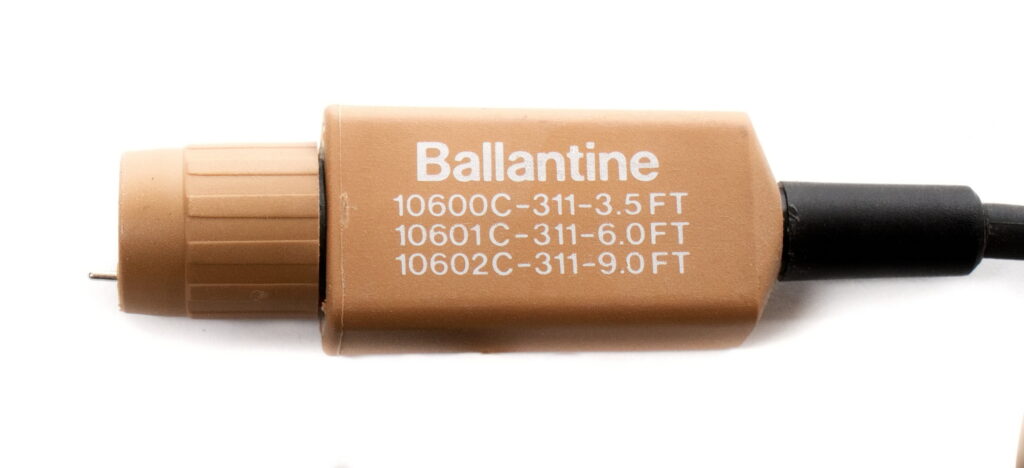

Ballantine 10600C Selectable Probe
Ballantine 10600C Selectable Probe

Ballantine 10600C Selectable Probe

USD $35

The 10600C is a 3.5′ selectable 1x / 10x passive probe, with a readout pin and ground reference selection.

Stock: 2

Place order

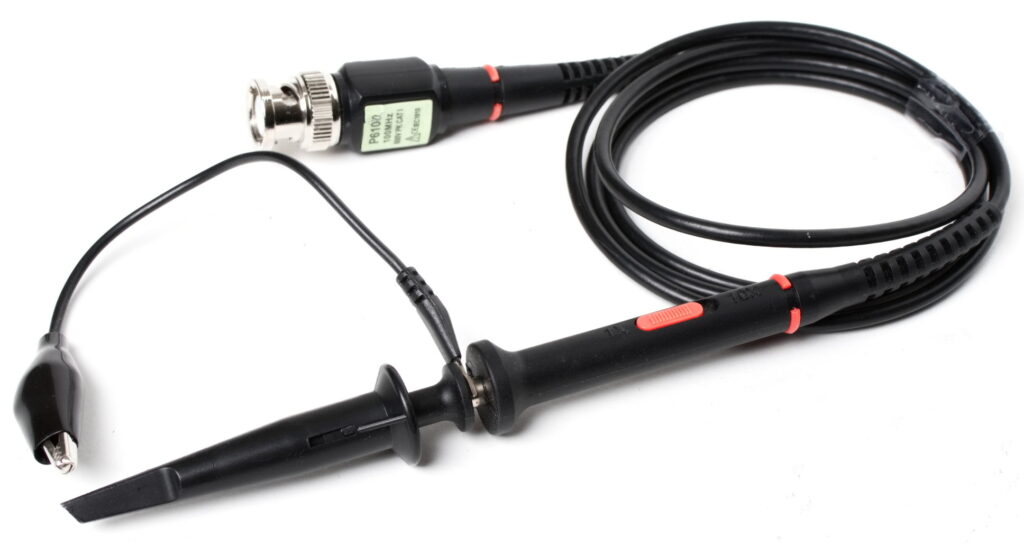

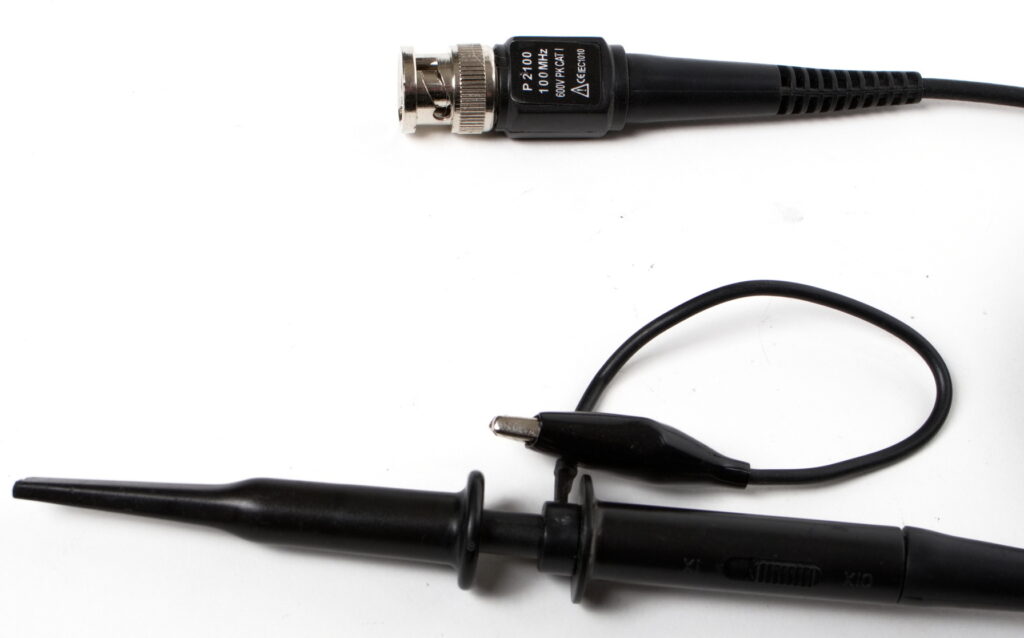

P2100 Selectable Probe
P2100 Selectable Probe

P2100 Selectable Probe

USD $25

The P2100 is a selectable passive x1 / x10 100 MHz, 600V probe.

Stock: 1

Place order

P6100 Selectable Probe
P6100 Selectable Probe

P6100 Selectable Probe

USD $29

The P6100 is a selectable passive x1 / x10 100 MHz, 600V probe.

Stock: 1

Place order

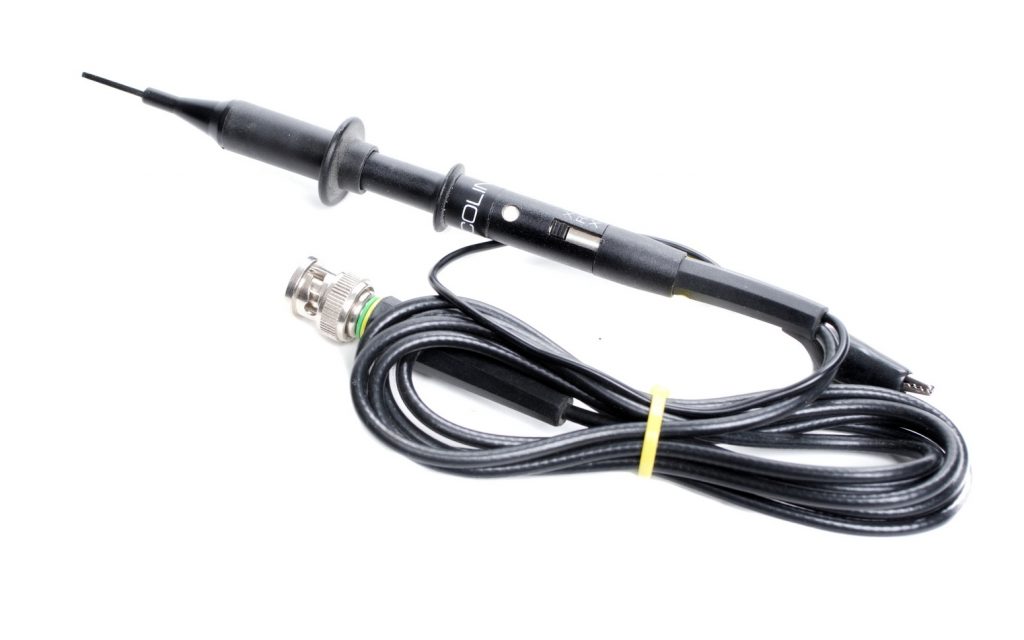

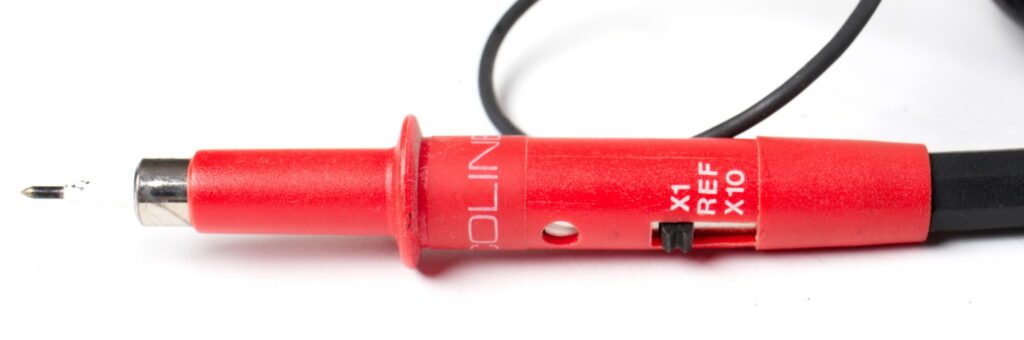

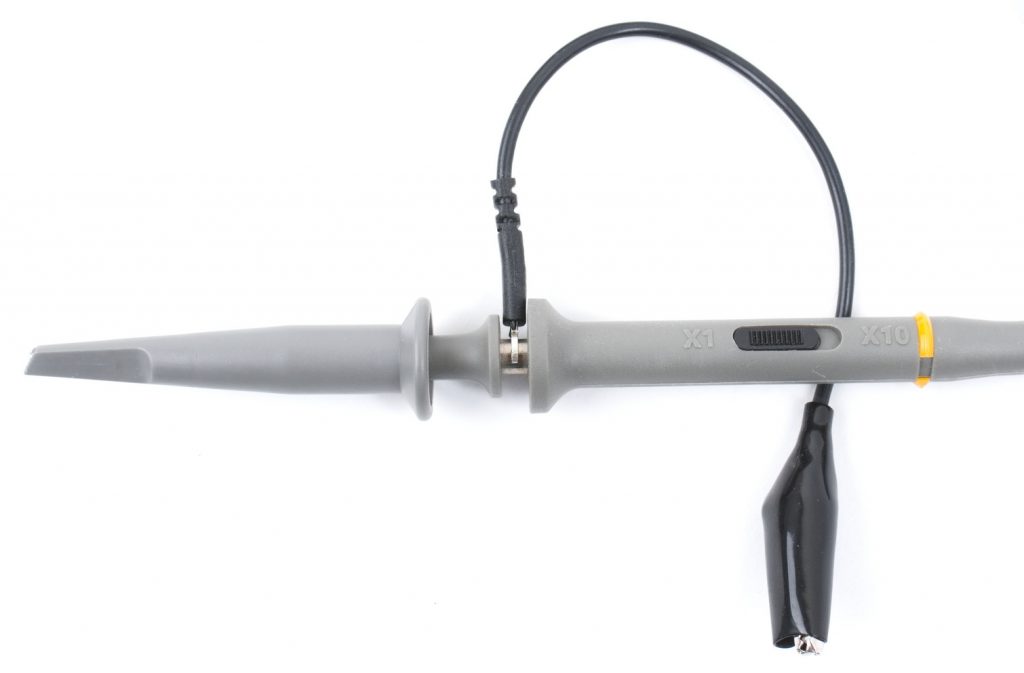

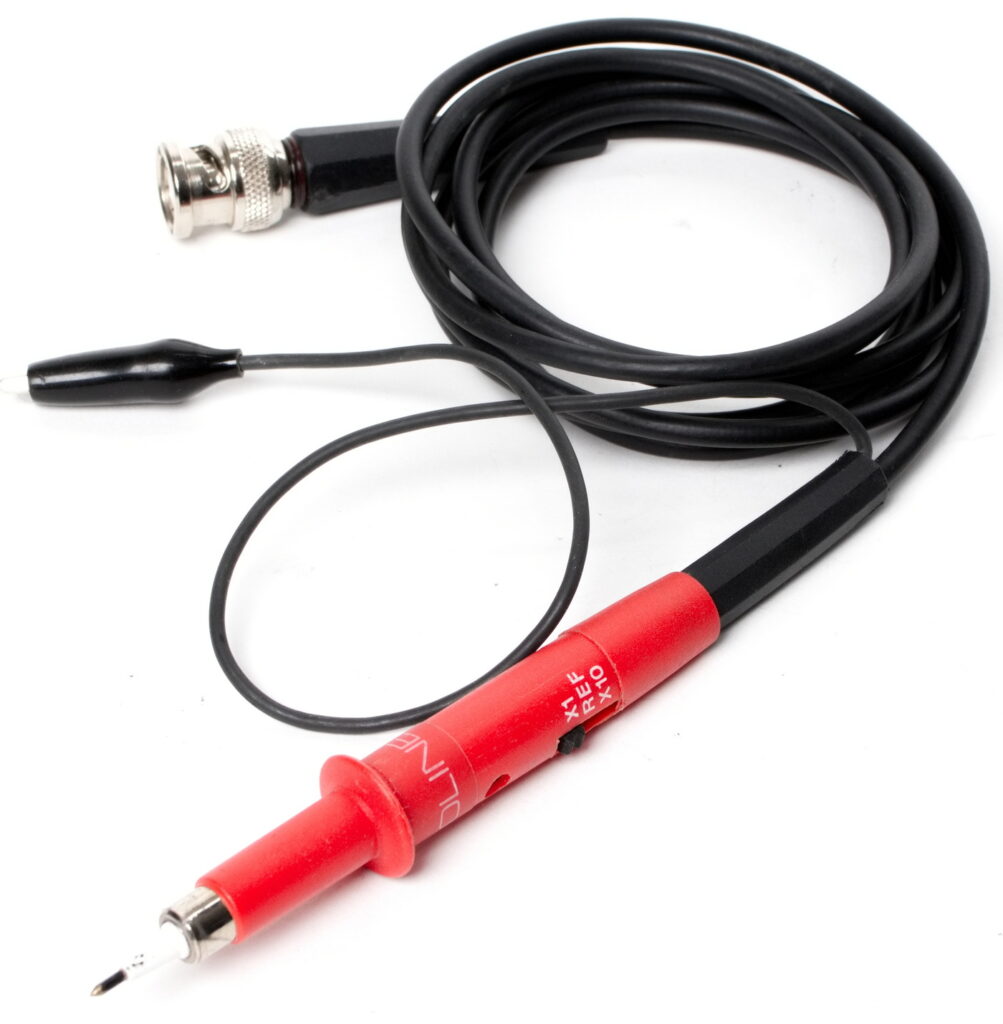

Colline Selectable 1/10x Probe
Colline Selectable 1/10x Probe

Colline Selectable 1/10x Probe

USD $15

This is a selectable x1/x10 oscilloscope probe.

Stock: 1

Place order

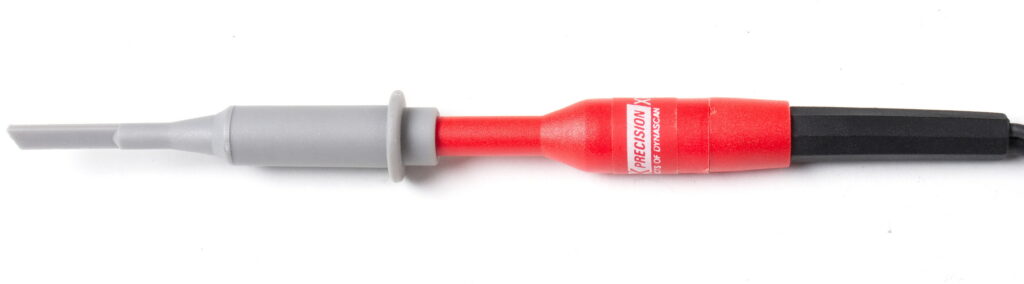

Dynacan Precision X-10 Probe
Dynacan Precision X-10 Probe

Dynacan Precision X-10 Probe

USD $10

This is a very basic x10 passive oscilloscope probe, additional technical details are not available.

Stock: 1

Place order

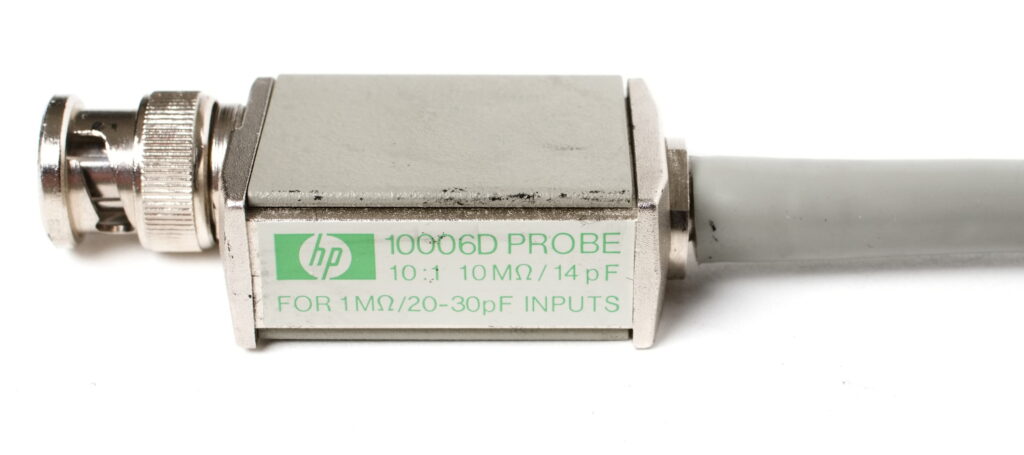

HP 10006D Voltage Divider Probe
HP 10006D Voltage Divider Probe

HP 10006D Voltage Divider Probe

USD $35

The 10006D is a 10:1 voltage divider probe for 1MO inputs.

Stock: 1

Place order

Probe Master PM 6105 Probe
Probe Master PM 6105 Probe

Probe Master PM 6105 Probe

USD $35

The PM 6105 is a passive 275MHz x10 probe for oscilloscopes.

Stock: 1

Place order

Tektronix P6058 Voltage / Temp Probe
Tektronix P6058 Voltage / Temp Probe

Tektronix P6058 Voltage / Temp Probe

USD $69

The P6058 is a combination 1x DC voltage and temperature measuring device, rated up to 500V.  It is designed for use with digital multimeters and plug-ins including the DM501, 7D13, and 7D12/M1, which have a 4-pin LEMO S-series connector for this probe.  The temperature sensor is a diode-connected transistor.  To measure temperatures, the hook tip is removed from the probe, exposing a ceramic tip connected thermally to the transistor case.

Stock: 1

Place order

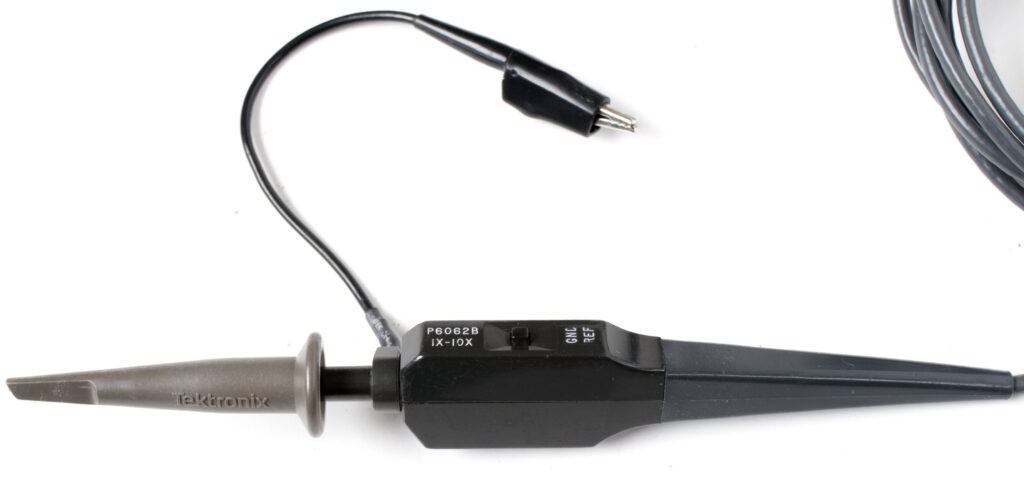

Tektronix P6062B Probe
Tektronix P6062B Probe

Tektronix P6062B Probe

USD $29

The P6062B is a passive switchable (x1, x10) probe for 1MO scope inputs.  It has a readout pin that indicates selected attenuation, and a ground reference button.

Stock: 1

Place order

Tektronix P6101 Probe
Tektronix P6101 Probe

Tektronix P6101 Probe

USD $35

The P6101 is a passive 15 MHz, x1, miniature modular probe for 1MO scope inputs.

Stock: 1

Place order

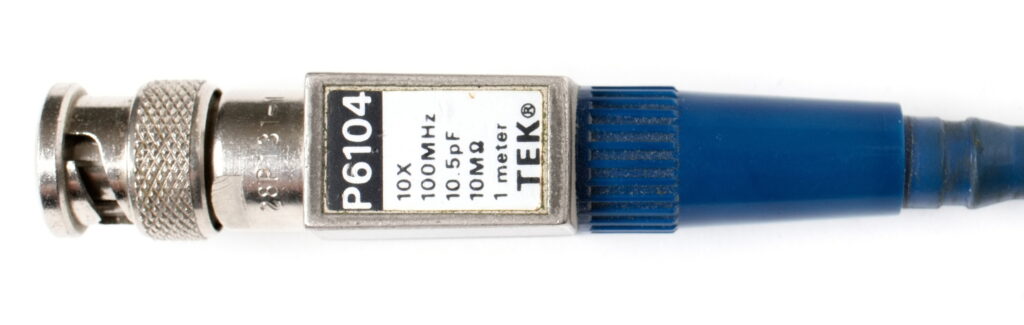

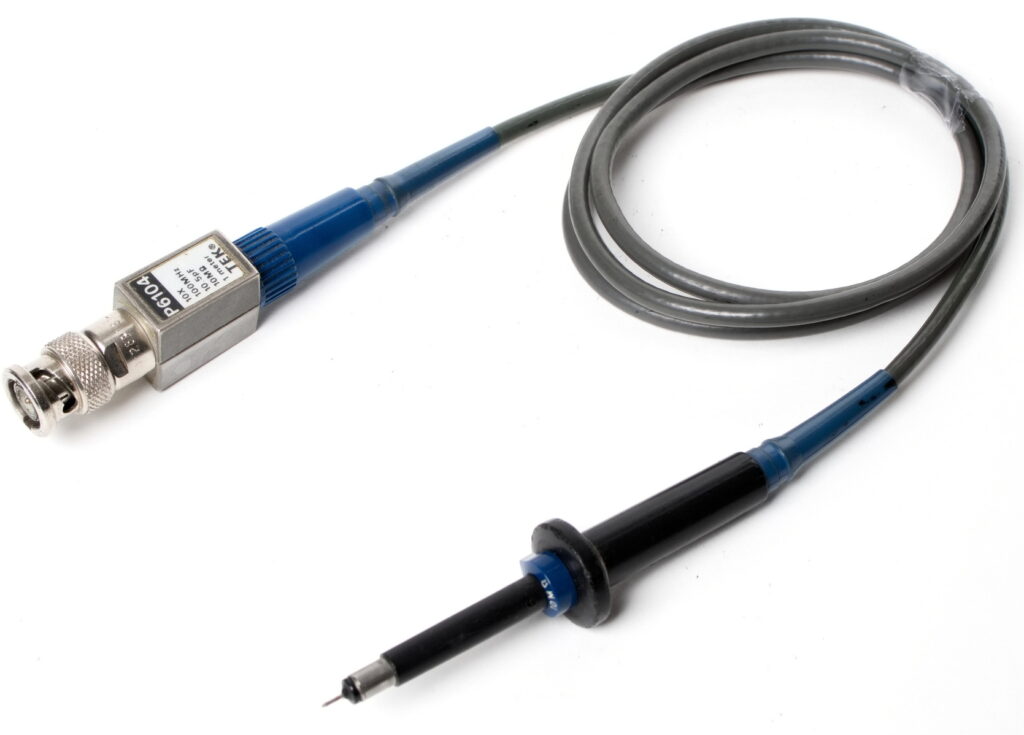

Tektronix P6104 Probe
Tektronix P6104 Probe

Tektronix P6104 Probe

USD $44

The P6104 is  passive 100 MHz, x10, miniature modular probe for 1MO scope inputs.  This probe has a shorter cable than the P6105.

Stock: 1

Place order

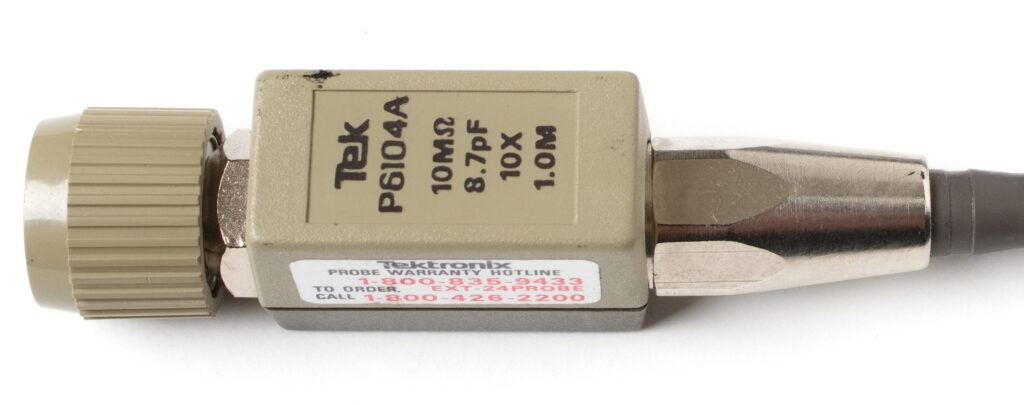

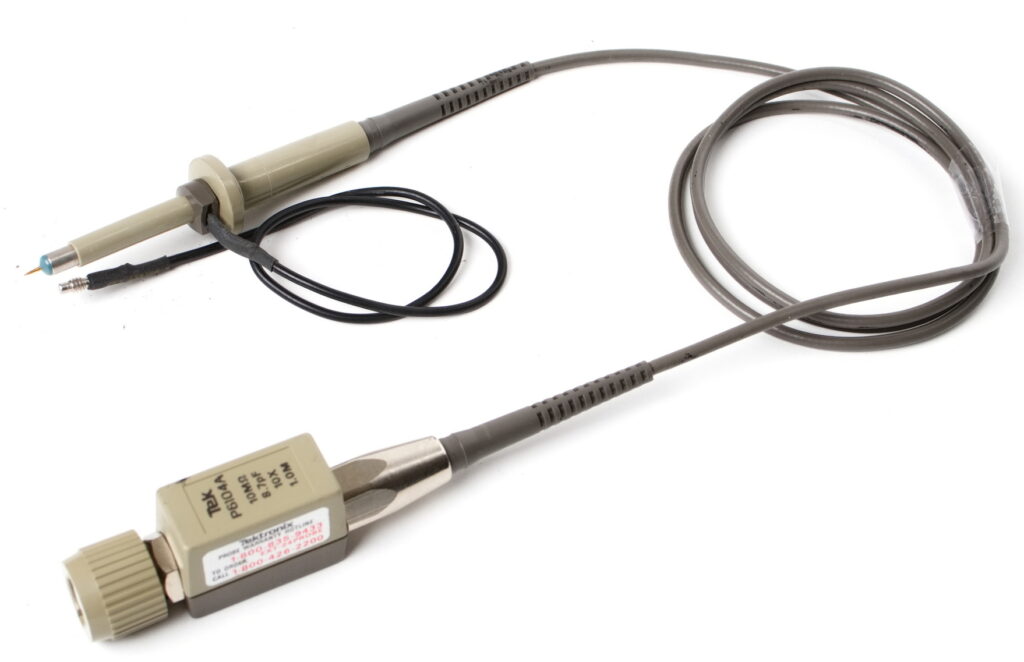

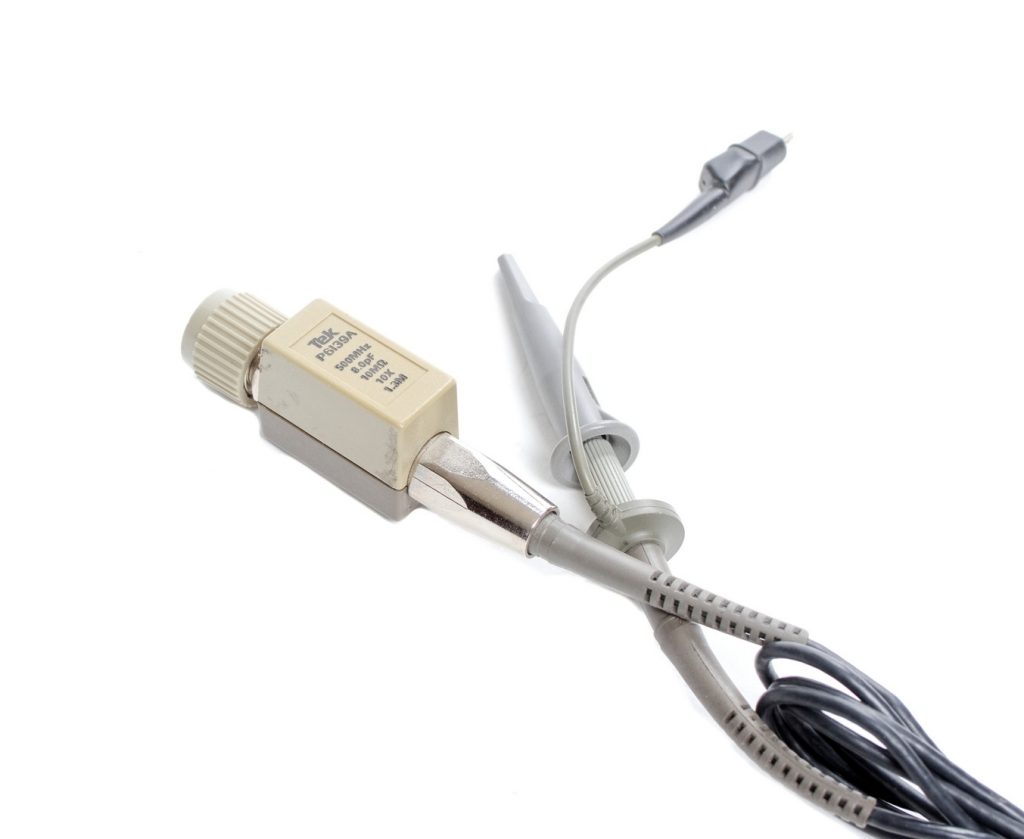

Tektronix P6104A Probe
Tektronix P6104A Probe

Tektronix P6104A Probe

USD $35

The P6104A is  passive 100 MHz, x10, miniature modular probe for 1MO scope inputs.  This probe has a shorter cable than the P6105.

Stock: 1

Place order

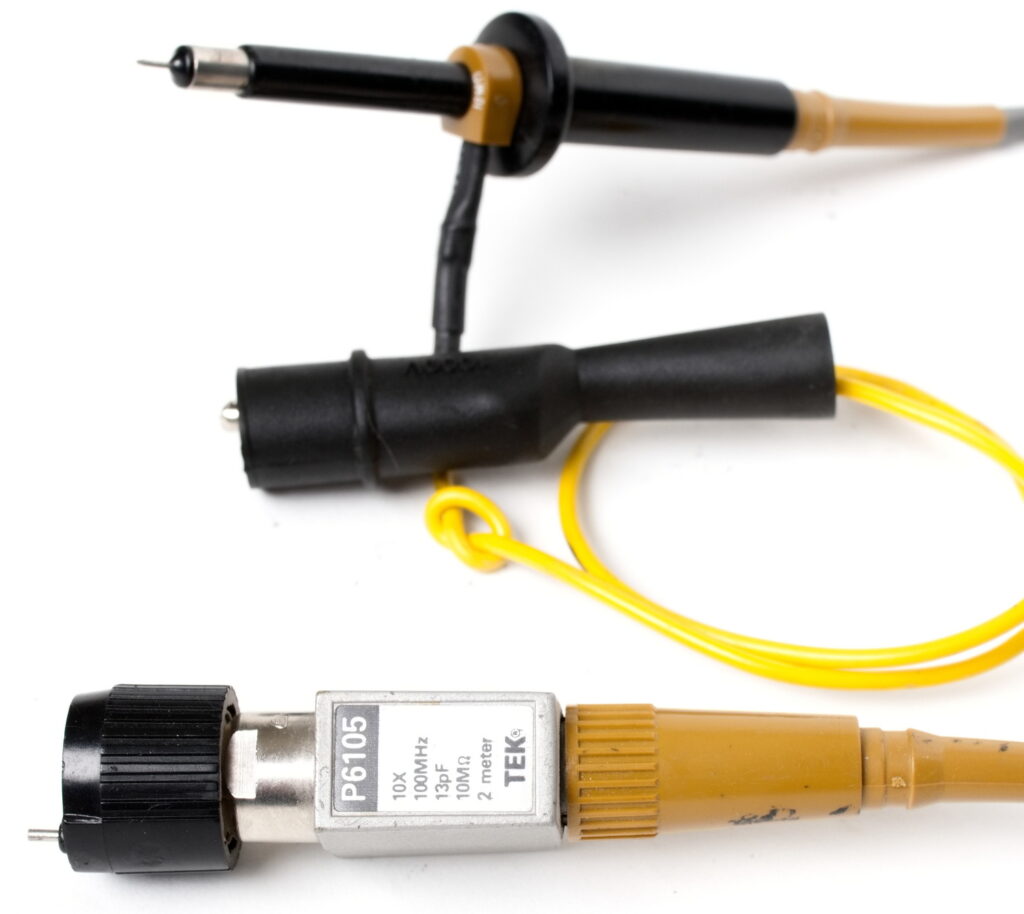

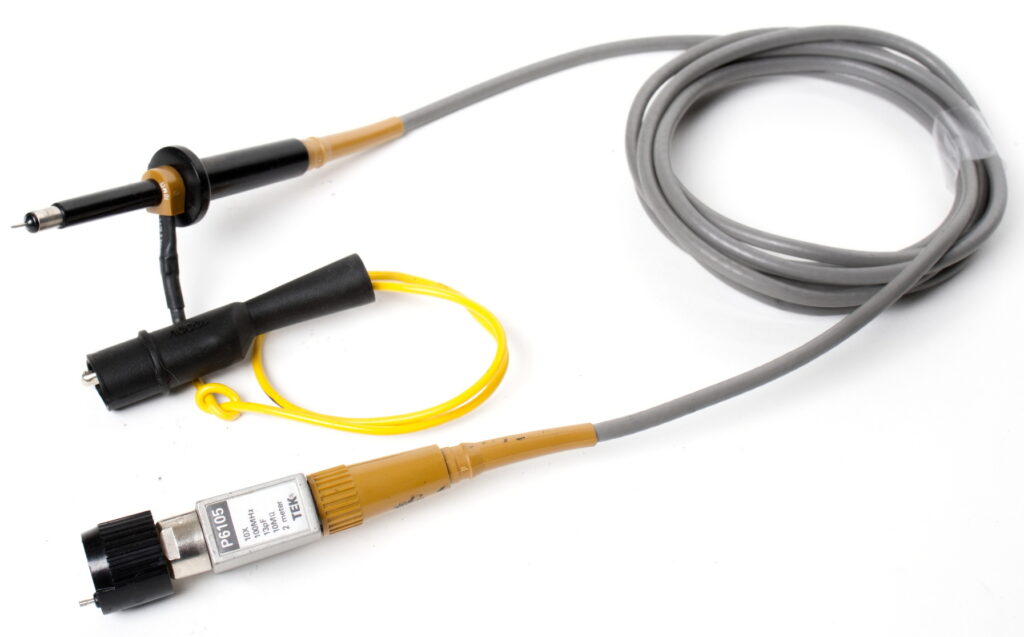

Tektronix P6105 Probe
Tektronix P6105 Probe

Tektronix P6105 Probe

USD $35

The P6105 is  passive 100 MHz, x10, miniature modular probe for 1MO scope inputs with a readout encoding pin.

Stock: 1

Place order

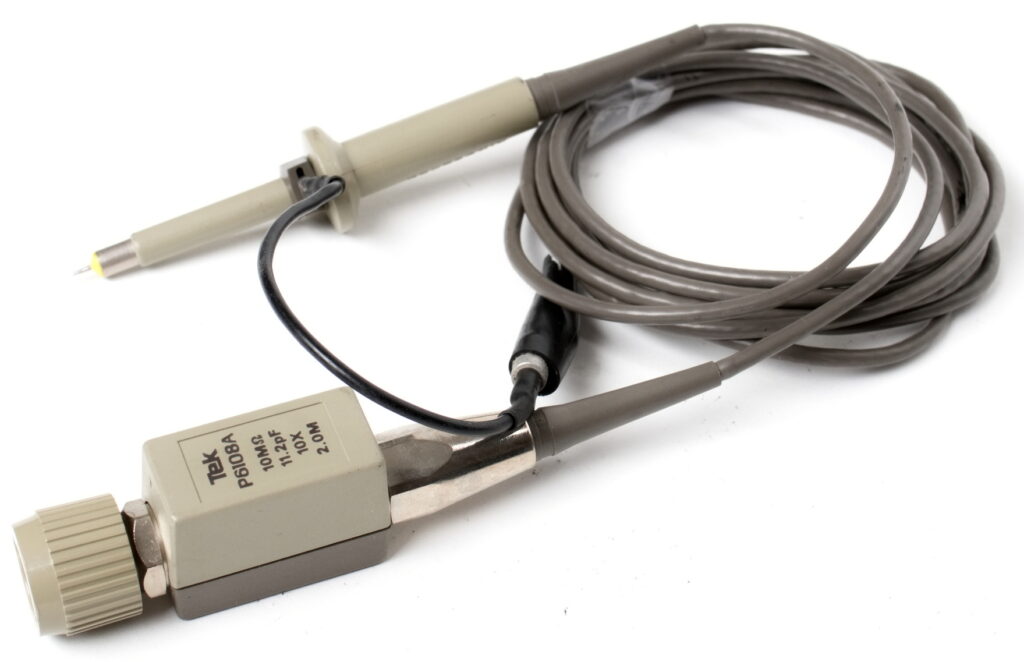

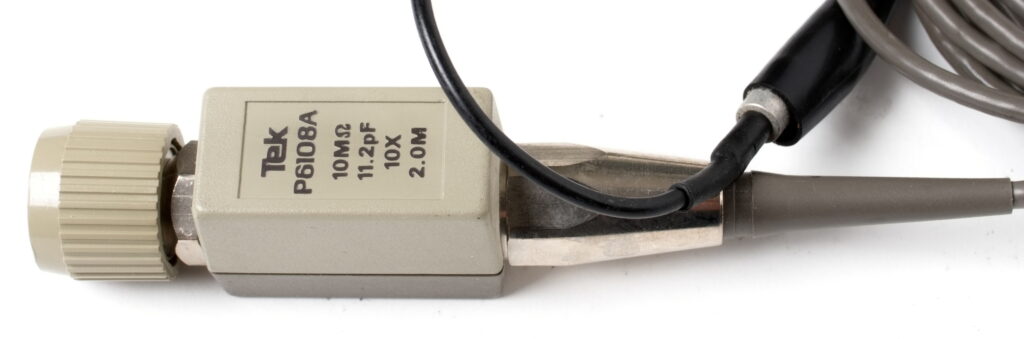

Tektronix P6108A Probe
Tektronix P6108A Probe

Tektronix P6108A Probe

USD $75

The P6108A is a passive 100 MHz, x10, miniature modular probe for 1 MO scope inputs with a BNC connector and a readout encoding pin.

Stock: 1

Place order

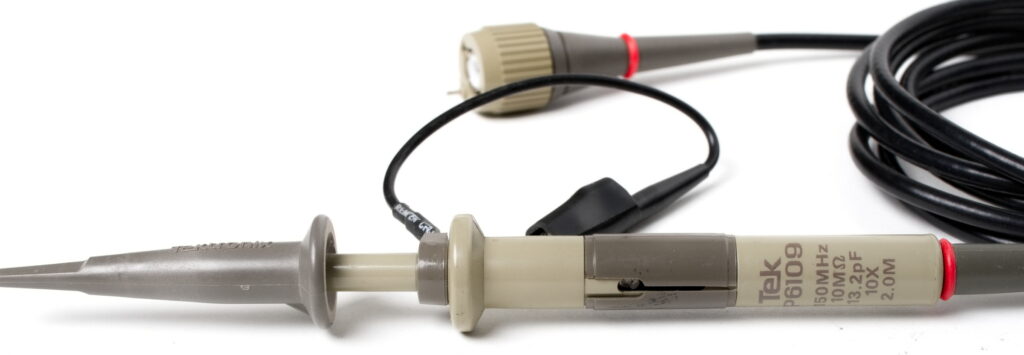

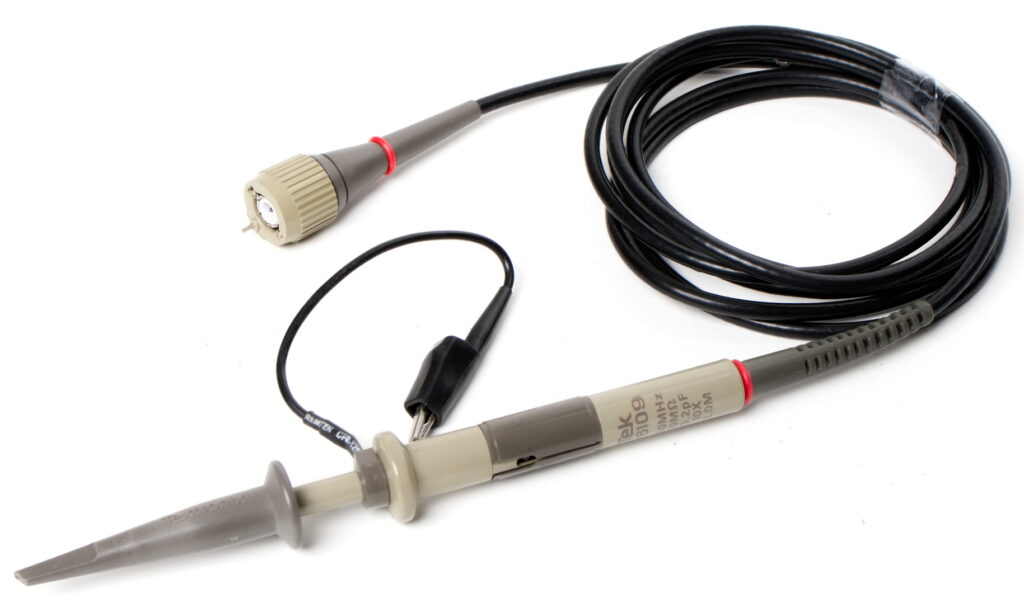

Tektronix P6109 Probe
Tektronix P6109 Probe

Tektronix P6109 Probe

USD $35

The P6109 is a 150 MHz x10, 3 m passive probe for scopes like the 2252 with 1 MO inputs.  It has a BNC plug witha  readout pin.

Stock: 2

Place order

Tektronix P6109B Probe
Tektronix P6109B Probe

Tektronix P6109B Probe

USD $39

The P6109B probe is a compatible with most general purpose oscilloscopes that have a 1MO input impedance and bandwidth up to 100MHz.  The probe is also compatible with Tektronix oscilloscopes that automatically detect probe attenuation and adjust the scale readout accordingly.  The P6109B is a downrated version of the P6109, but covers a larger compensation range.

Stock: 1

Place order

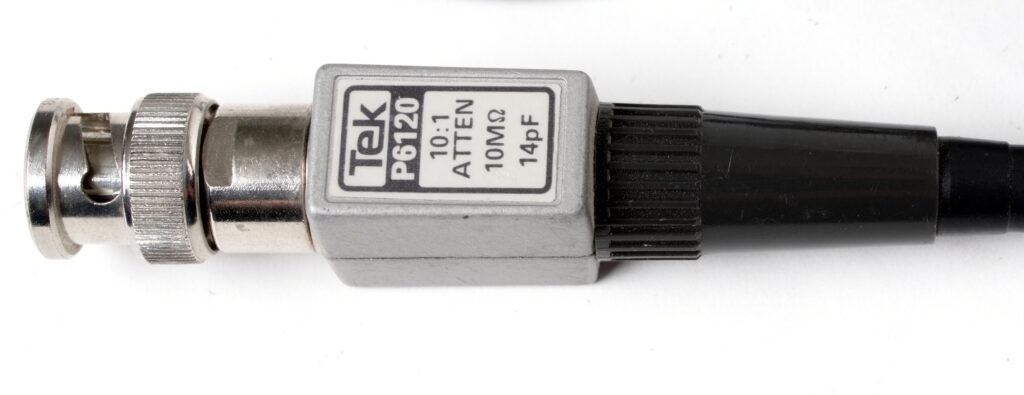

Tektronix P6120 Probe
Tektronix P6120 Probe

Tektronix P6120 Probe

USD $35

The P6120 is a 60MHz x10, passive miniature probe, with a BNC connector without a readout pin.

Stock: 1

Place order

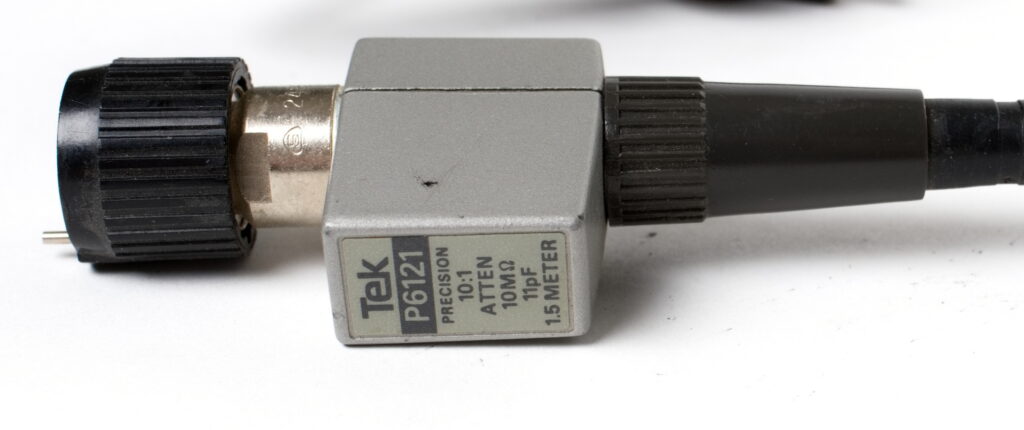

Tektronix P6121 Probe
Tektronix P6121 Probe

Tektronix P6121 Probe

USD $45

The P6121 is a 100 MHz passive x10 probe designed for the 2236 scope.  The P6122 is a general purpose variant.

Stock: 1

Place order

Tektronix P6131 300MHz x10 probe
Tektronix P6131 300MHz x10 probe

Tektronix P6131 300MHz x10 probe

USD $25

The P6131 is a passive miniature 300 MHz ×10 scope probe for 1 MΩ // 14-18 pF scope inputs.  It has a x10 readout pin, and shares accessories with many other Tektronix subminiature modular probes.

Stock: 1

Place order

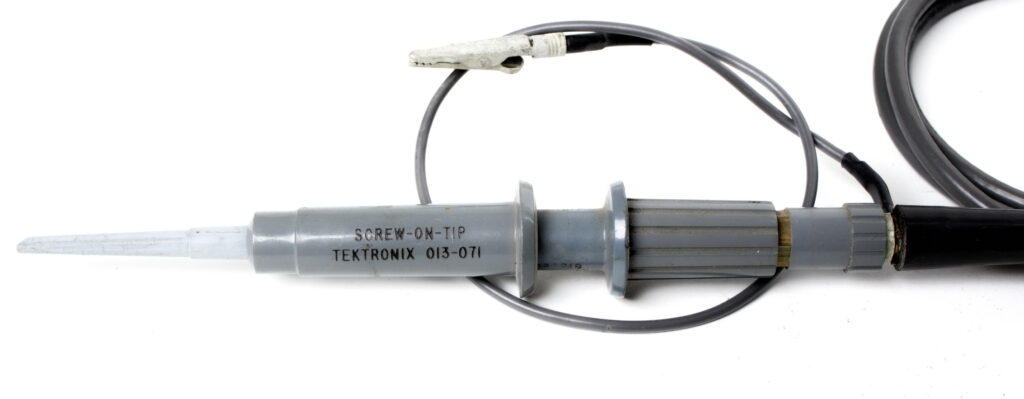

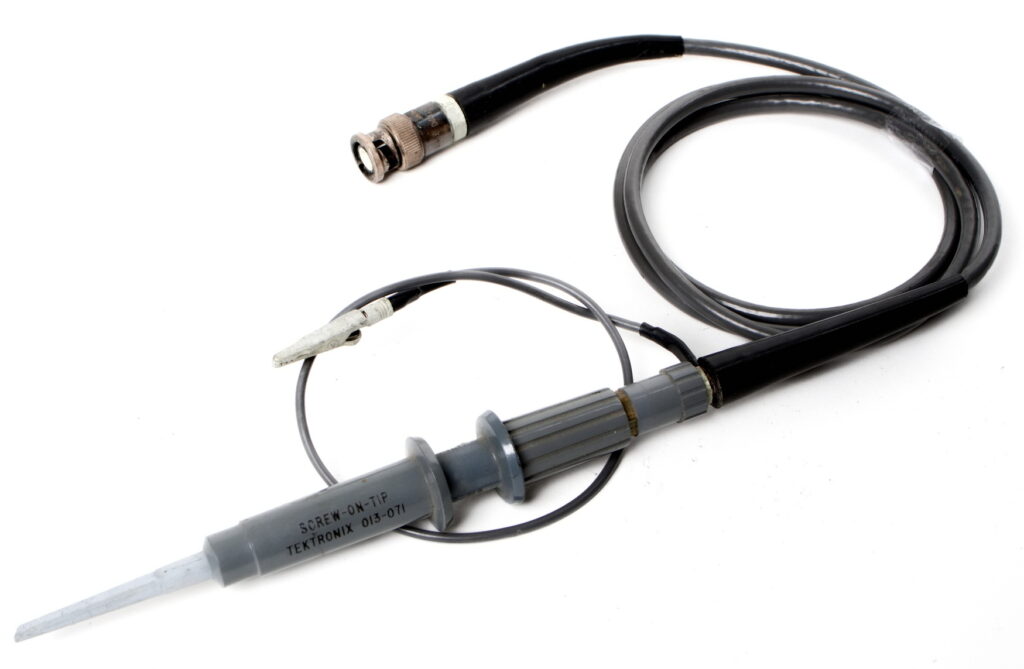

Tektronix P6006 with Screw On Grabber Tip
Tektronix P6006 with Screw On Grabber Tip

Tektronix P6006 with Screw On Grabber Tip

USD $29

The P6006 is a general-purpose probe designed for use with Tektronix DC to 33 MHz Oscilloscopes. The probe can be compensated to match all Tektronix Plug-Ins and Oscilloscopes with input capacitances of 15 pF to 47 pF and input resistance of 1 MΩ

Stock: 2

Place order

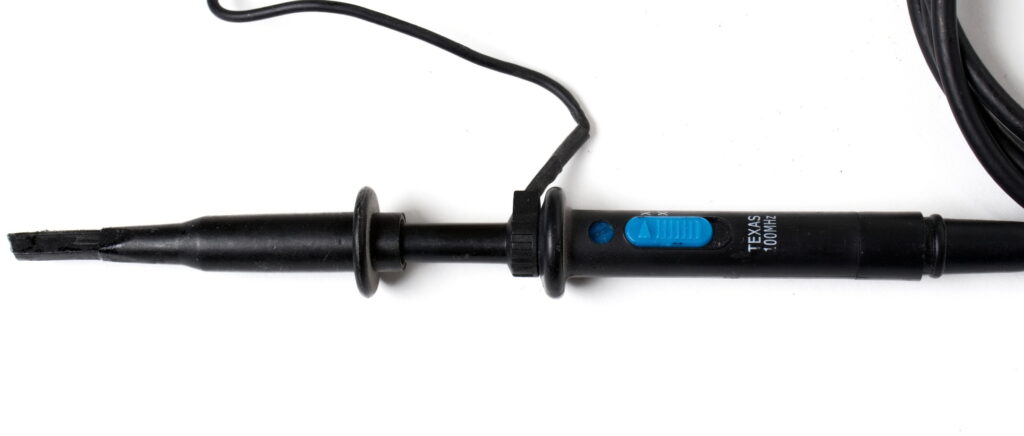

Texas Instruments 1X-10X 100 MHz Probe
Texas Instruments 1X-10X 100 MHz Probe

Texas Instruments 1X-10X 100 MHz Probe

USD $45

This 100MHz Texas Instruments probe features a selector switch on the probe body for selecting between 11x and 10x.

Stock: 1

Place order

Tektronix P6430 Temperature Probe
Tektronix P6430 Temperature Probe

Tektronix P6430 Temperature Probe

USD $39

This diode connected transistor based temperature probe is designed to be used with digital multimeters and plug-ins (e.g. DM 43 and DM 44).  The temperature range is -55C to 150C, with a maximum voltage of 100V.

Stock: 1

Place order

Tektronix P6601 Temperature Probe
Tektronix P6601 Temperature Probe

Tektronix P6601 Temperature Probe

USD $69

The Tektronix P6601 is a temperature probe for the DM501A, DM 502A, and 7D13A. The sensing element is a PT100 (100 ? platinum resistor). The probe uses a 2-pin LEMO S-series connector.

Stock: 1

Place order

Fluke 100x Oscilloscope Probe
Fluke 100x Oscilloscope Probe

Fluke 100x Oscilloscope Probe

USD $10

Compatible with cat. III and IV standards of 1 000V and 60 V @ 10A.

Stock: 1

Place order

FLUKE 100X Oscilloscope Probe
FLUKE 100X Oscilloscope Probe

FLUKE 100X Oscilloscope Probe

USD $10

Compatible with cat. III and IV standards of 1 000V and 60 V @ 10A.

Stock: 1

Place order
